Wired connections
Test the agreed cable paths, ports and device links.
TTV Solutions / Networks & Wi-Fi
Coverage is planned. Reliability is checked.
A router at one end of a building is rarely a complete network plan. We consider the floor layout, construction, device load and the services sharing the connection.
OFFICE / COVERAGE STUDY
CORRIDOR / WIRED BACKBONE
Network cabinetReception
Separate guest access from counter and office equipment.
Illustrative placement, not a radio survey or measured coverage result.
FROM A FLOOR PLAN TO A WORKING LINKCheck the connection
Check the connection
where people use it.
Wireless use
Check the target areas and device movement between them.
Separation
Review guest, staff and equipment access against the plan.
Handover
Label the infrastructure and explain ownership and support.
PLANNING THE RIGHT SCOPE01 02 03
Separate the three layers of the connection.
The incoming service
The ISP link and router determine what enters the site. Local Wi-Fi improvements cannot remove an upstream service limitation.
The wired backbone
Cabling, switches and power delivery connect access points, desks, cameras and shared equipment.
The wireless edge
Access point placement, channel use and roaming determine how devices connect while moving through the space.
What can be included
- 01Site and coverage assessment
- 02Structured cabling, rack organization and labeling
- 03Managed switching, VLANs and guest isolation
- 04Access point placement and roaming configuration
- 05Coverage checks and network handover
PROJECT STUDY / ILLUSTRATIVE SCOPE
A connected two-floor office
A concept for a 25-person office with meeting rooms, shared printing and visitors.
The proposed work

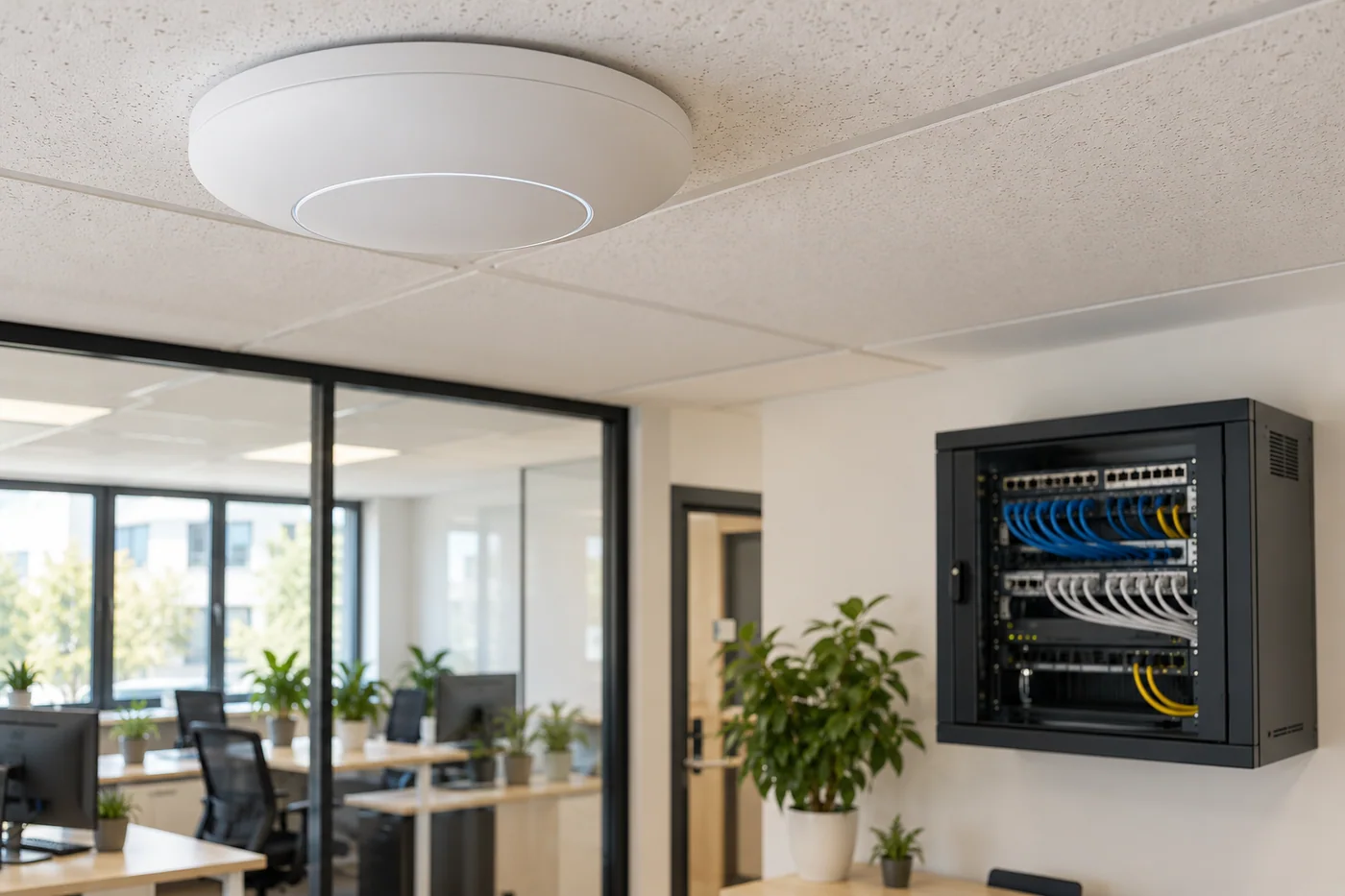

A labeled network cabinet, wired desks, ceiling access points and separate staff, guest and camera networks.
The intended result
A clear connection plan for everyday work, with guest access separated from business devices.
ANOTHER WAY TO USE THIS SERVICE
Guest Wi-Fi for a small café
A proposed layout separating guest traffic from a counter terminal and security equipment.
- A planned wired link to each access point
- Guest access separated from business devices
- Coverage and roaming checks at the seating areas
BEFORE YOU DECIDEGood questions.
Good questions.
Useful answers.
Will more access points always improve Wi-Fi?+
No. Placement, power, channels, backhaul and device density matter. Adding units without a plan can create overlapping interference or poor roaming.
Can staff, guests and cameras share one network?+
They can share physical infrastructure while being separated into appropriate logical networks, subject to the equipment and security requirements.
